Take a quick tour to us
- ISO9001:2015, ISO13485 and IATF16949 certificated
- ERP and MES smart system for tracking
- DFM Analysis for every order
- SPI, X-RAY , AOI ,ICT and Function Test are avaliable
- 380+ staffs , 36 production lines, 28 highly skilled engineers team
Our Service
Low or Mid volume , we do it all
- Layers: 1-24
- Finished Copper: 0.5-12oz
- Min. Line/Track Width: 0.065MM
- Finished Board Thickness: 0.2-10.0mm
- Min. Finished Diameter of PTH Hole: 0.15mm
- Impedance Control Single-ended/Differential : ±10%
- Purchase from major and verified distributors
- Provide Alternative PN Plan to save cost
- Fully traceable by ERP and MES system
- Transparent and efficient platform
- Components type : BGA, uBGA, QFN, POP, smallest size 01005
- Min. IC Pitch: 0.012’’ (0.3mm)
- FN Lead Pitch: 0.012’’ (0.3mm)
- Min. BGA sizes: 0.012’’ (0.3mm)
- Type of Assembly : THD (Thru-Hole Device), SMT (Surface-Mount Technology), SMT & THD mixed Double-sided SMT and THD assembly. Flexible pcb assembly , rigid pcb assembly ,flexible-rigid pcb assembly
- Automatic Optical Inspection (AOI)
- X-Ray test
- Function Testing
- IC programming
- ICT Test
- Product Assembly
- Complete Product Testing including Functional, Environmental, and Burn-In
- Software Loading
- Complete System Integration
- Cable and Wire Harness Assembly
- Packaging and Labeling including Barcoding
- Direct Shipment
- For conformal coating customers must provide following information:
- Conformal coating thickness requirements on the pcb board
- What conformal coating test will the customer perform?
- What certifications does the customer require?
Why tdt-ele
This is the most important benefit of your long term relationship with us. After learning your specific needs, with the Shenzhen strong supply chain support ,we will quickly work out a solution to meet your expenses and cost reduction targets. They may be achieved by providing lower cost PCB, PCB assembly or by our reengineering or designing services to meet your expectations.
Because we are capable of handling DFM analysis, PCB fabrication, PCB assembly, and components sourcing under one roof, which can avoid mistake before manufacturing .
We save your time transition from one phase of a project to another. For instance, from layout-to-fab, fab-to-assembly, parts procurement-to-assembly. We’re capable of handling everything in one streamlined process, all services under one roof, so you get the benefit of working with us by one time line versus 3 or 4 companies and 3 or 4 time lines.
We react quickly to your changing needs. Our working time and style is flexible to meet your variable needs. To us, Dedication to the highest level of customer service is our main mission.
You can rely on us to handle all aspects of your printed circuit assembly projects. We are able to handle your pcb layout, circuit board fabrication, pcb assembly , parts sourcing and final assembly , so you can focus on your core competencies like research ,development and marketing.
As a Turn-Key PCBA manufacturing factory, we can provide the best prototype and low-to-mid volume PCB fabrication and assembly services for our customers
Production Process: Dedication To Details
We work for quality, not quantity. View VR for more details

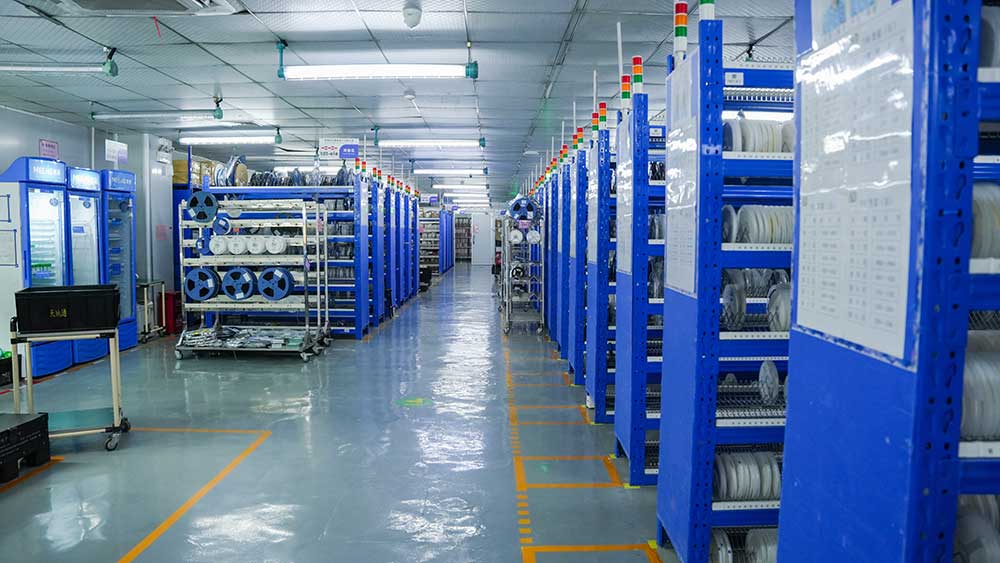

Warehouse
- 1: IQC checking on the incomming materical
- 2: MES systemmange the components First-in First-out (FIFO) and Inventory Control

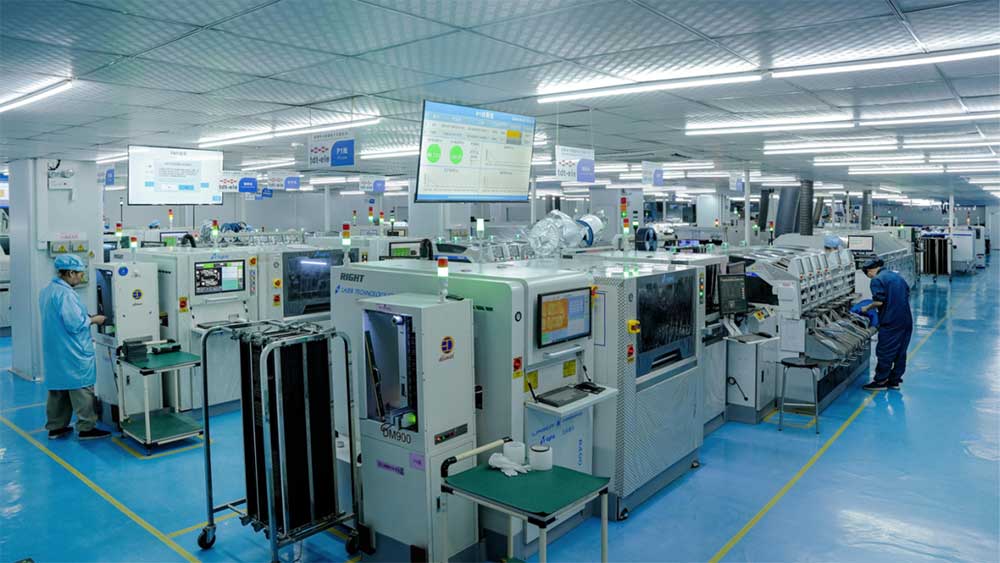

SMT Workshop
- 1: 12 Advanced FUJI NXT-III SMT lines
- 2: SPI / AOI/X-RAY test on board
- 3: MES production management for tracking all the process

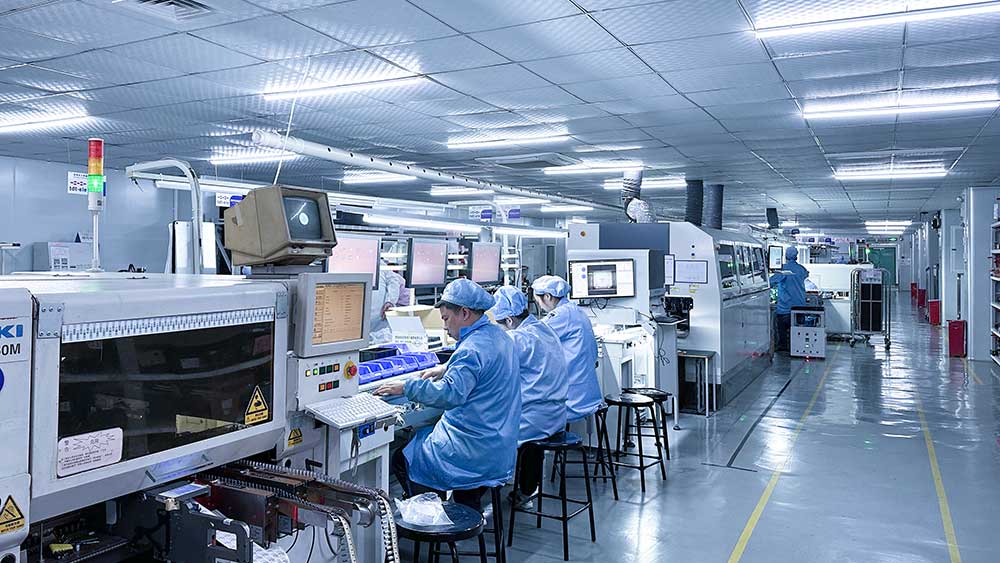

DIP Workshop
- 1: One through hole soldering by wavemachine and one DIP line which soldering by hand
- 2: All soldering material meet Rosh Reach standard
Constant Temperature and Humidity Workshop
Industries and Solutions
About Us
Shenzhen Tianditong Electronics Co., Ltd (tdt-ele) is established in 2004 and has four plants in China together , which mainly provide pcb fabrication, components sourcing and pcb assembly service for customers from all over the world.
Tdt-ele have about 400 workers with 36 State-of-the-Art production lines and 10000 Square meters workshop and focus on one-stop PCBA manufacturing.
Tdt-ele are an IATF16949 ,ISO9001:2015 and ISO13485 certified factory which can provide PCBA manufacturing services to the Automotive Electronics, Medical Electronics, Consumer Electronics, Communications, and Smart Home control industries, and demanding industrial customers.
