In today’s digital age, electronic products have long penetrated into every aspect of our lives, and behind these high-tech products, are countless precision processes and strict quality control results. In the electronic manufacturing industry, how to efficiently and accurately complete the detection of PCB (printed circuit board) has become one of the key links to ensure product quality.

Among them, the flying needle test stands out for its unique flexibility and efficiency, and has become the object of favor of many manufacturers. Whether it is an engineer who is new to this field or an experienced professional, it is particularly important to master the core knowledge of flying needle testing. So, how exactly does the flying needle test work? What are its advantages? How to implement it?

In the following, we will delve into these topics and uncover the mystery of flying needle testing…

What is a flying needle test?

In modern electronics manufacturing, it is vital to ensure that every component works properly, especially in the complex printed circuit board (PCB) production process. To achieve this, manufacturers are constantly exploring new ways to improve test efficiency and accuracy. In this context, “flying needle test” came into being and became a widely respected test technology.

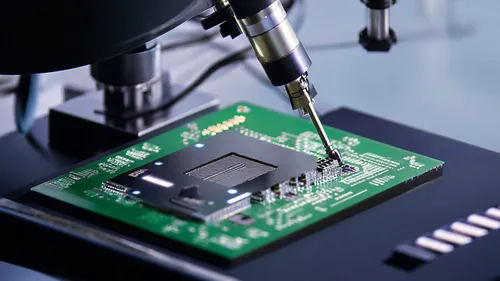

Flying needle testing, also known as flying probe testing, is a non-contact test method. Unlike traditional needle bed testing, flying needle testing does not require complex fixed test fixtures to be made in advance. It uses a test probe carried by a programmable robotic arm to move over the board surface and contact various test points for electrical performance checks. This approach not only greatly improves the flexibility of the test, but also allows the test equipment to quickly adapt to different types of board design changes, especially for small batch, multi-variety or complex design PCB testing. Therefore, flying needle testing is the ideal solution to meet the current market demand for personalized and customized electronic products.

Advantages of flying needle testing

Flying needle testing has gained a foothold in the electronics manufacturing industry due to a number of significant advantages:

1.Strong flexibility

Design adaptability: One of the best features of flying needle testing is its extreme flexibility. Since there is no need to rely on a fixed test fixture, it can be easily adapted to a wide variety of PCB designs of different sizes and shapes, even those with complex layouts.

Fast switching: For applications that require frequent change of test objects, such as in the development phase or in small-batch, multi-variety production environments, flying needle testing can quickly adjust the test program to meet the testing needs of new products.

2.Cost effectiveness

Reduce mold costs: For products with small or frequently changing production volumes, traditional needle bed testing requires the design of a dedicated test mold for each model. This undoubtedly increases the upfront cost. By contrast, flying needle testing eliminates this overhead.

Long-term savings: While the cost of a single test may be slightly higher than some traditional methods, the overall economics of flying needle testing are more pronounced when maintenance costs and frequency of equipment updates are taken into account over a long period of time.

3.High precision and reliability

Accurate testing: With the help of advanced positioning technology, flying needle testing can achieve sub-millimeter precision positioning, ensuring that each test can accurately land on the specified position.

Comprehensive coverage: In addition to basic connectivity testing, flying needle testing can also complete a number of tasks including signal integrity, voltage, current and other functional testing, providing a full range of quality assurance.

4.Easy to integrate and upgrade

Strong compatibility: The flying needle test system is usually designed with a good open interface, easy to connect with other production equipment or management systems, forming a complete production line automation solution.

Continuous improvement: As software algorithms continue to advance, flying needle test equipment can be enhanced or improve performance through simple software updates without having to replace the entire system.

Operating procedure of flying needle test

1.Prepare for the test

Obtain design documents: First, you need to obtain the design documents of the circuit board to be tested, including but not limited to circuit schematics and PCB layout diagrams. These documents will serve as the basis for writing test programs.

Test equipment calibration: The flying needle test equipment is calibrated using known standard parts to ensure that all probe positions are accurate. This is the premise to ensure the accuracy of the test results.

2.Test program writing

Define test points: Based on the circuit design documentation, determine which points require electrical testing and define the locations of these test points in the test software.

Set the test sequence: plan the best path for the probe to visit each test point and optimize the moving trajectory of the probe to reduce unnecessary moving distance and improve the test efficiency.

Write test instructions: Write corresponding test instructions according to the test requirements, such as on-off test, resistance measurement, voltage detection, etc., to ensure that each test point gets the appropriate attention.

3.Perform the test

Load the circuit board: Place the PCB to be tested in the specified position on the test bench and ensure that it is stable and motionless.

Start the test program: Start the test program through the computer control system, and the flying needle touches the test point one by one according to the preset path.

Real-time monitoring: During the test process, the monitor observes the test situation, records the test data, and is ready to deal with possible problems at any time.

4.Data analysis and feedback

Evaluation of test results: After the test is completed, all test data is collected and compared with the expected value to determine whether the circuit board meets the design requirements.

Generate a report: Generate a detailed test report based on the test results, documenting the problems found and analyzing the possible causes.

Feedback correction: The problems found in testing are fed back to the design team or production department so that appropriate adjustments or fixes can be made in time.

5.Repeat testing and validation

Problem verification: For boards where a problem is found, a secondary test may be required to verify the existence of the problem.

Qualification judgment: After confirming that all test items have reached the standard, the circuit board can be judged qualified and enter the next step.

Application of flying needle test

As a flexible and efficient testing method, flying needle testing has been widely used in many fields. Here are some specific use scenarios that demonstrate the benefits and applicability of flying needle testing in different ways:

1.R&d stage

Prototype verification: In the development process of new products, designers often need to perform functional verification on the preliminary design of the circuit board. Flying needle testing can quickly adapt to changing design needs, helping engineers identify and resolve potential design problems at an early stage.

Iterative testing: With the gradual improvement of the design scheme, it is necessary to repeatedly test the modified circuit board. The flexibility of flying needle testing makes it ideal for this phase.

2.Small batch production

Multi-variety and low-volume manufacturing: For production environments that require frequent product variety switching, such as custom electronics manufacturing, flying needle testing can quickly set up and test different boards without having to replace expensive fixed test fixtures.

Sample testing: By flying needle testing of samples before mass production, you can ensure that the quality and performance of the final product meets the expected standards.

3.Fault diagnosis and maintenance

Fault location: When a circuit board fails, flying needle testing can help technicians quickly locate the problem. Point by point test to find the specific location of short circuits, open circuits, or other electrical faults.

Repair verification: After repairing the damaged circuit board, use a flying needle test to verify the repair effect and ensure that the board returns to normal function.

4.Quality control

Factory inspection: As the last inspection process before the product leaves the factory, the flying needle test can carry out a comprehensive electrical performance check on each circuit board to ensure that unqualified products will not flow into the market.

Continuous monitoring: For electronics in critical application areas, such as aerospace, medical devices, etc., flying needle testing can be used for regular inspection to ensure that equipment is always in optimal working condition.

conclusion

Through the above comprehensive analysis of flying needle testing, we can clearly understand that as a modern test means, flying needle testing not only brings unprecedented flexibility and efficiency to the electronics manufacturing industry, but also plays a vital role in ensuring product quality. Whether it is rapid iterative verification in the early stage of product development, efficient application in small-batch multi-variety production, or precise positioning in fault diagnosis and quality control, flying needle testing has shown its unique advantages. With the continuous progress and improvement of technology, the application range of flying needle testing will continue to expand and become an important force to promote the development of the electronic manufacturing industry.

For practitioners, understanding and mastering this technology is not only an effective way to improve personal professional skills, but also the key to cope with the increasingly fierce market competition and achieve sustainable development of enterprises.
